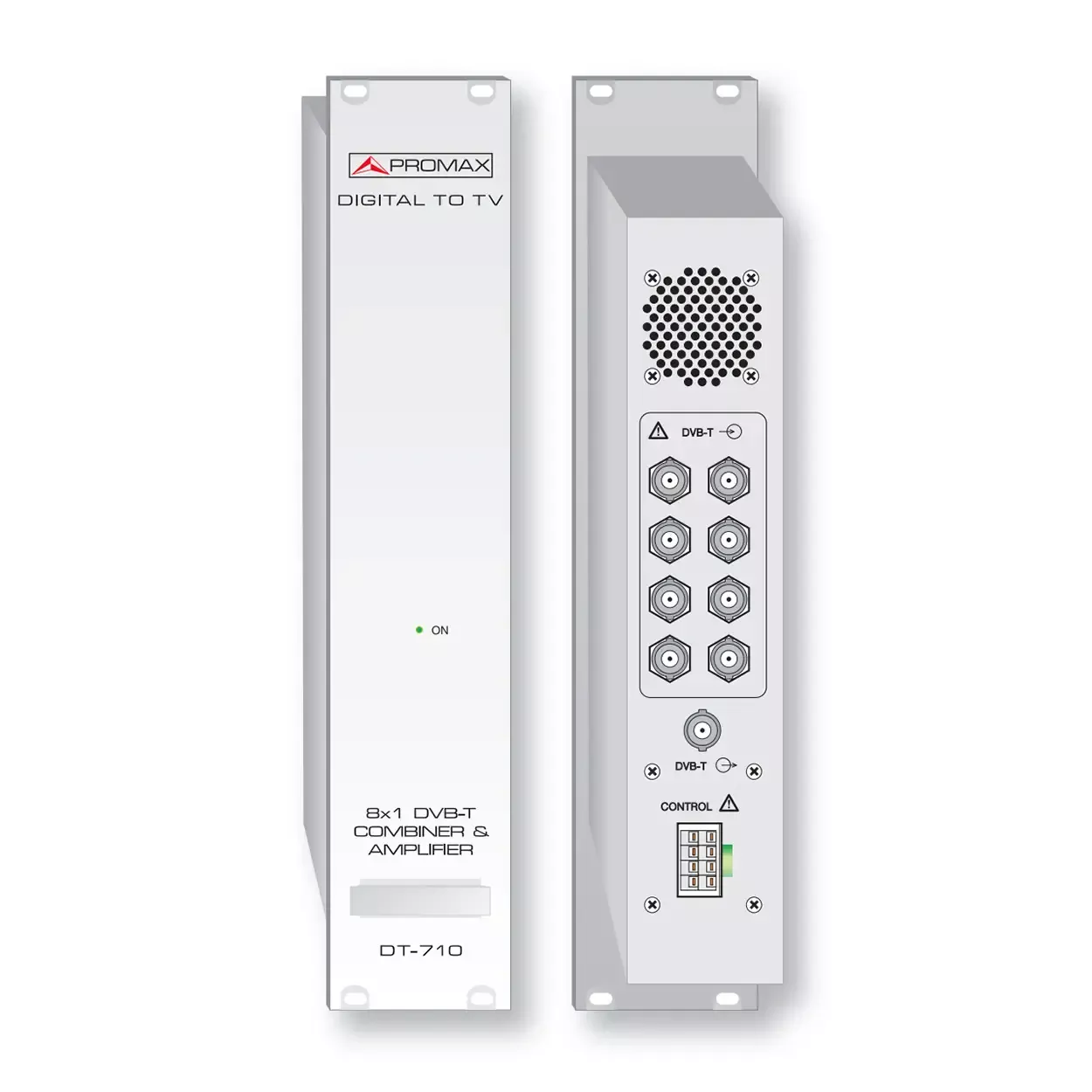

PROMAX DT-710

Description

• Frequency bands: 50 MHz (C-2) to 860 MHz (C-69)
• Input type: 8 inputs
• Input connector: 75 Ohm BNC female
• Input return losses: <-15 dB
• Maximum COFDM input: 1 channel at 96 dBuV +/- 3 dB; 2 channel at 93 dBuV +/- 3 dB; 4 channel at 90 dBuV +/- 3 dB; 8 channel at 87 dBuV +/- 3 dB; 16 channel at 84 dBuV +/- 3 dB
• Output type: 1 amplified output
• Output connector: 75 Ohm BNC female
• Output return losses: <-15 dB
• Maximum COFDM output power: +10 dBm
• Output MER:>37 dB from 650 MHz to 860 MHz;>39 dB from 50 MHz to 650 MHz
• Output bandwidth 4.2 MHz (BW = 8 MHz):>43 dBc from 650 MHz to 860 MHz;>51 dBc from 50 MHz to 650 MHz
• Output gain: 23 dB +/- 3 dB between each input- output
• Maximum output level: 1 channel at 119 dBmV; 2 channel at 116 dBuV; 4 channel at 113 dBuV; 8 channel at 110 dBuV; 16 channel at 107 dBuV
• Voltage: Via DT-800 Control and Power Module
• Voltage connector: JST B08P-XL-HDS (connecting cable supplied with DT-800)
• Voltage consumption +12 V <115 A (105 mA tip.)
